Basic Multiturn Elect. Actuator with Bevel Gearbox

Sdtork Actuator type 8000 Series is designed for multiturn application for remote control of various types of Knife Edge Gates Sluice Gated etc.

Torque Range: 40 Nm to 950 Nm
Output Speed Range: 3.33 RPM to 122 RPM

Rated Torque	Tripping Torque Adjustable	Maximum Starting Torque	Output Speed	Actuator Model	Self Non Self Locking	Max Spindle dia Acceptable for Coupling Type: A B C	Motor			Appr Wt
Nm	Nm	Nm	RPM			mm	Kw/Hp	RPM	Reference	Kg
132	40-132	10	3.33	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		15	5	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		20	6.66	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		30	11.0	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		40	13.3	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		60	20	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		70	23.3	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		80	26.6	SD-8000-08-BG03	SL	35	0.75/1	1400	SD080433	75
		120	40	SD-8000-08-BG03	SL	35	2.2/3	2800	SD9L253	75
		140	46.6	SD-8000-08-BG03	SL	35	2.2/3	2800	SD9L253	75
		190	63.3	SD-8000-08-BG03	SL	35	2.2/3	2800	SD9L253	75
		240	80	SD-8000-08-BG03	NSL	35	2.2/3	2800	SD9L253	75
		270	90	SD-8000-08-BG03	NSL	35	2.2/3	2800	SD9L253	75
		365	122	SD-8000-08-BG03	NSL	35	2.2/3	2800	SD9L253	75
330	100-330	10	3.33	SD-8000-20-BG03	SL	40	0.75/1	1400	SD080433	95
		15	5	SD-8000-20-BG03	SL	40	0.75/1	1400	SD080433	95
		20	6.66	SD-8000-20-BG03	SL	40	0.75/1	1400	SD080433	95
		30	11.0	SD-8000-20-BG03	SL	40	0.75/1	1400	SD080433	95
		40	13.3	SD-8000-20-BG03	NSL	40	1.5/2	1400	SD080453	95
		60	20	SD-8000-20-BG03	NSL	40	1.5/2	1400	SD080453	95
		80	23.3	SD-8000-20-BG03	NSL	40	2.2/3	2800	SD9L253	95
		90	26.6	SD-8000-20-BG03	NSL	40	2.2/3	2800	SD9L253	95
		120	40	SD-8000-20-BG03	NSL	40	2.2/3	2800	SD9L253	95
450	150-450	10	2.22	SD-8000-20-BG4.5	SL	50	0.75/1	1400	SD080433	130
		15	3.33	SD-8000-20-BG4.5	SL	50	0.75/1	1400	SD080433	130
		20	4.44	SD-8000-20-BG4.5	SL	50	0.75/1	1400	SD080433	130
		30	6.66	SD-8000-20-BG4.5	SL	50	0.75/1	1400	SD080433	130
		40	8.88	SD-8000-20-BG4.5	NSL	50	1.5/2	1400	SD080453	130
		60	13.33	SD-8000-20-BG4.5	NSL	50	1.5/2	1400	SD080453	130
		80	17.77	SD-8000-20-BG4.5	NSL	50	2.2/3	2800	SD9L253	130
		90	20	SD-8000-20-BG4.5	NSL	50	2.2/3	2800	SD9L253	130
		120	26.66	SD-8000-20-BG4.5	NSL	50	2.2/3	2800	SD9L253	130
950	665-950	10	1.66	SD-8000-20-BG06	SL	60	0.75/1	1400	SD080433	170
		15	2.5	SD-8000-20-BG06	SL	60	0.75/1	1400	SD080433	170
		20	3.33	SD-8000-20-BG06	SL	60	0.75/1	1400	SD080433	170
		30	5	SD-8000-20-BG06	SL	60	0.75/1	1400	SD080433	170
		40	6.66	SD-8000-20-BG06	NSL	60	1.5/2	1400	SD080533	170
		60	10	SD-8000-20-BG06	NSL	60	1.5/2	1400	SD080533	170
		80	13.33	SD-8000-20-BG06	NSL	60	2.2/3	2800	SD9L253	170
		90	15	SD-8000-20-BG06	NSL	60	2.2/3	2800	SD9L253	170
		120	20	SD-8000-20-BG06	NSL	60	2.2/3	2800	SD9L253	170

Other Products in 'Electrical Actuators' category

Three Phase Qtr. Turn Elect. Actuator with Linkage

Send Inquiry

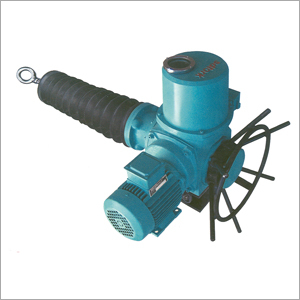

Three Phase Linear Cylinder Electric Actuator
