Three Phase Linear Cylinder Electric Actuator

Get a Price/Quote

Product Details:

Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Product Description

Three Phase Linear Cylinder Electric Actuator

Sdtork Electric Cylinder Actuator 7000 Series are suitable for operation of Fan Dampers Valves with Rising Stem Flap Gates Shutter Valves Fuel Feed Mechanisms Blower Pitch Regulators Fart Blades Pitch Adjusters Fluid Couplings for Speed Control and Many more similar applications.

Torque Range: From 50 Kgs to 6000 Kgs
Output Speed Range: 1 to 36.5 mm/sec

7000 Series Linear Cylinder Electric Actuator

Thrust	Stroke	Speed	Actuator Model	Self / Non Self Locking	Motor
Kgs	mm	mm/sec			Kw/Hp	RPM
50	100-400	1,1.5,2.0,3.0,4.0,6.0,7.0	SD-7000-03-50	SL	0.37/0.50	1400
		8.0,12.0,14.0	SD-7000-03-50	SL	1.1/1.5	2800
		19.0,24.0,27.0,36.5	SD-7000-03-50	NSL	1.1/1.5	2800
100	100-400	1,1.5,2.0,3.0,4.0,6.0,7.0	SD-7000-06-100	SL	0.37/0.50	1400
		8.0,12.0,14.0	SD-7000-06-100	SL	1.1/1.5	2800
		19.0,24.0,27.0,36.5	SD-7000-06-100	NSL	1.1/1.5	2800
200	100-650	1,1.5,2.0,3.0,4.0,6.0,7.0	SD-7000-08-200	SL	0.75/1	1400
		8.0,12.0,14.0	SD-7000-08-200	SL	2.2/3	2800
		19.0,24.0,27.0,36.5	SD-7000-08-200	NSL	2.2/3	2800
300	100-650	1,1.5,2.0,3.0,4.0,6.0,7.0	SD-7000-08-300	SL	0.75	1400
		8.0,12.0,14.0	SD-7000-08-300	SL	2.2	2800
		19.0,24.0,27.0,36.5	SD-7000-08-300	NSL	2.2	2800
400	100-650	1,1.5,2.0,3.0,4.0,6.0,7.0	SD-7000-08-400	SL	0.75/	1400
		8.0,12.0,14.0	SD-7000-08-400	SL	2.2/3	2800
		19.0,24.0,27.0,36.5	SD-7000-08-400	NSL	2.2/3	2800
500	150-650	1,1.5,2.0,3.0	SD-7000-20-500	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-500	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-500	SL	2.2/3	2800
600	150-650	1,1.5,2.0,3.0	SD-7000-20-600	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-600	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-600	SL	2.2/3	2800
700	150-650	1,1.5,2.0,3.0	SD-7000-20-700	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-700	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-700	SL	2.2/3	2800
800	150-650	1,1.5,2.0,3.0	SD-7000-20-800	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-800	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-800	SL	2.2/3	2800
1200	150-650	1,1.5,2.0,3.0	SD-7000-20-1200	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-1200	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-1200	SL	2.2/3	2800
2000	150-650	1,1.5,2.0,3.0	SD-7000-20-2000	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-2000	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-2000	SL	2.2/3	2800
3500	150-650	1,1.5,2.0,3.0	SD-7000-20-3500	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-3500	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-3500	SL	2.2/3	2800
4500	150-650	1,1.5,2.0,3.0	SD-7000-20-4500	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-4500	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-4500	SL	2.2/3	2800
6000	150-650	1,1.5,2.0,3.0	SD-7000-20-6000	SL	0.75/1	1400
		4.0,6.0	SD-7000-20-6000	SL	1.5/2	2800
		8.0,9.0,12.0	SD-7000-20-6000	SL	2.2/3	2800

Other Products in 'Electrical Actuators' category

Single Phase Linear Electrical Actuator

Send Inquiry

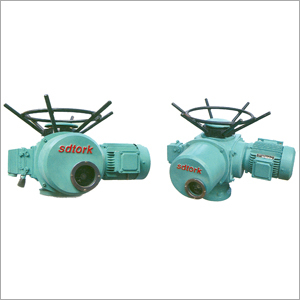

Three Phase Quarter Turn Electrical Actuator

Send Inquiry

Single Phase Quarter Turn Electrical Actuator

Send Inquiry

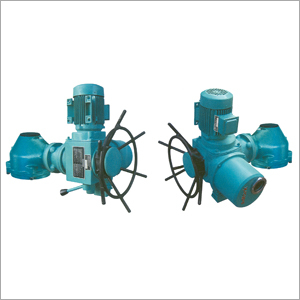

Basic Multiturn Elect. Actuator with Bevel Gearbox
