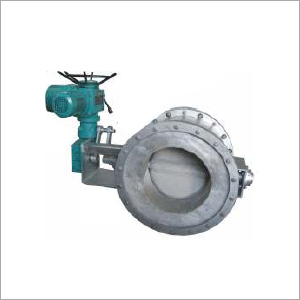

Dampers shall be butterfly type consisting of circular blade, mounted to axle within formed flanged frame. Frames shall be constructed of 304 Stainless Steel or any other material specification channel and shall have full circumstance blade stop located in air stream. Damper shaft shall be continuous, solid-cold rolled Stainless Steel extending through the entire diameter of damper and beyond damper bearing a minimum of six inches or higher depending on the application. Axle shall be supported and sealed, relubricable ball bearings mounted to damper frame. Press fit bearings are not advisable. Damper frame and blade shall be fabricated from Stainless Steel or any other material as per customer's specification.
Damper leakage shall not exceed 1.4% of the maximum airflow.
Heavy duty industrial grade butterfly dampers are custom designed for use in high temperature and pressure applications where special flanges and other custom features are required.
Designs and material options are available for higher temperatures and pressure.
We can build our butterfly dampers integrally into a "T" or "Y" duct section with an operator mounted to one damper and a slave linkage to the other damper. The linkage can be arranged so that as one damper opens, the other damper will close, these are widely used for process air or gas diversion applications. The complete pre-assembled and adjusted unit is shipped to the job site for easy installation, saving time and cost. Description
Housing
Sealing Plate
Flap
Flange
Inspection Window
Hand Wheel
Electrical Actuator
Mounting Brackets for Electrical Actuator
Bearing
Bracket for Bearing
Stuffing Box
Stuff Pipe
Stuff Shaft
Diverter Damper can be lined with ultra molecular high density polyethylene and Cast Nylon.
